Drone Video&Data Transmission Module More Than 30KM UAV Links

  • 1
  • 2

Brand Name : Suntor

Model Number : ST1410KP

Place of Origin : ShenZhen

MOQ : 1 Set

Payment Terms : T/T, Western Union

Supply Ability : 1000 Set per month

Delivery Time : 15 work days

Packaging Details : box package

Color : White

Weight : 160g

Dimensions : 130*55*25mm

Contact Now

ST1410KP wireless IP digital transmission module is a wireless transmission product designed on the basis of the self-developed OFDM baseband algorithm. It has the characteristics of large bandwidth, long distance, strong anti-interference ability, strong diffraction performance and so on.

Drone Video&Data Transmission Module More Than 30KM UAV Links

key technology

  • MIMO technology (2T2R)
  • OFDM wide bandwidth technology
  • Anti-Multi-path interference technology
  • low latency <5ms
  • Underlying encryption technology

Applicable scene

  • UAV/unmanned vehicles/unmanned boat digital transmission
  • Individual image transmission
  • Security image backhaul
  • Ocean/mining area video monitoring
  • Private network Video wireless backhaul

1.1. Specification manuals

Drone Video&Data Transmission Module More Than 30KM UAV Links

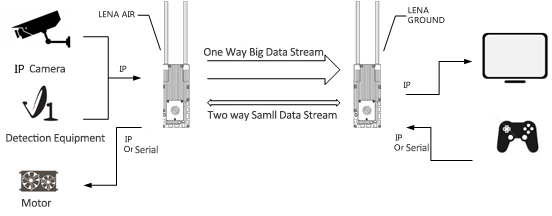

  • Long-distance image transmission
  • Large bandwidth IP data backhaul
  • Long-distance robot manipulation
  • Easy use as an Ethernet cable

Wireless Specifications
Frequency range 1410~1470MHz
Carrier modulation OFDM
RF channel 2*Tx & 2*Rx
Baseband protocol independent intellectual property
Code rate 1.2Mbps 2.5Mbps 5Mbps 7Mbps 9Mbps 13Mbps
RF Bandwidth 4MHz 8MHz 8MHz 10MHz 14MHz 20MHz
Constellation modulation QPSK QPSK QPSK QPSK QPSK QPSK
RF power 2*25dbm 2*25dbm 2*25dbm 2*25dbm 2*25dbm 2*25dbm
Receiving sensitivity -106dBm -104dBm -99dBm -98dBm -96dBm -95dBm
Note: the detailed code rate is described below
Data Specifications
Ethernet data 1.2Mbps~13Mbps One-way
Control data 115Kbps Two-way
Safety
Encryption standard AES 128bit; Physical layer encryption
Interface
Ethernet One-way Wide bandwidth data； Two-way115Kbps,UDP protocol
Serial port 115Kbps two-way
Voltage and power dissipation 9~24V <15W

Interface definition

Drone Video&Data Transmission Module More Than 30KM UAV Links

Interface definition sheet 1

number Interface name Interface description
1 DC 12V power supply interface,typical DC 12V
2 Ethernet Interface Standard 4 core network interface
3 Debug USB to serial port,monitoring the use of printing information
4 Switch

1 Switch 1,ON is Receiver,OFF is Transmitter

2 Switch 2,reserve,Dial to KE

Drone Video&Data Transmission Module More Than 30KM UAV Links

note:The Receiver and Transmitter share hardware, and the working state is selected through this dialing switch.
5 LED

1 Running indicator

2Synchro indicator

3 Ethernet indicator
6 ANT1 Antenna interface,Tx1 & Rx1,SMA-Female
7 ANT2 Antenna interface,Tx2 & Rx2,SMA-Female

1.2 Detailed definition of Tube Foot

Number Pin Signal name Signal description Interface description socket Silk-screen
1 　 LED_ARM Running indicator LED light
　 LED_LINK Wireless connection indicator 　 　
　 LED_ACT Ethernet Interface indicator 　 　
2 1 GORA Dial to the "ON" end to select the Receiver Receiver and Transmitter selector switches 　
2 REV_SEL reserve 　
3 1 VBUS Usb Power Usb to uart Debug Interface Micro straight USB socket 　
2 USB_DN Usb data
3 USB_DP
4 　 Suspension
5 GND Ground
4 1 TPTX+ Ethernet Interface data Ethernet Interface Straight 1.25mm space 4 Pin SMD socket Ethernet
2 TPTX-
3 TPRX+
4 TPRX-
5 1 RX+ RS485/422vdata RS485/422 Straight 1.25mm space 4 Pin SMD socket RS485
2 RX-
3 TX+
4 TX-
6 1 VCC12V_IN 9v-24v power input power Crooked 2.0mm space 2 Pin through socket DC12V
2 GND Power ground
7 1 GND Fan signal ground Fan Interface Straight 1.25mm space 2 Pin SMD socket 12V-
2 VCC12V_FAN Fan 12v power 12v+
8 1 GPS_PP1S pp1s Signal

GPS

moduel interface

 Straight 1.25mm space 6 Pin SMD socket GPS
2 GND ground
3 GPS_UART_RX Uart signal
4 GPS_UART_TX
5 VCC3V3 power
6 　 Reserve, Connect the ground or 3.3v power
9 1 TX_232 RS232 Transmit RS232 Straight 1.25mm space 4 Pin SMD socket RS232
2 GND ground
3 RX_232 RS232 receive
4 　 Suspension
10 1 SYNC_IN synchronization interface input synchronization interface Straight 1.25mm space 2 Pin SMD socket SYNC
2 SYNC_OUT synchronization interface output
11 1 TRX2 RF TX2/RX2 Antenna interface SMA TX2
12 1 TRX1 RF TX1/RX1 SMA TX1

1.3 Mechanical specifications

Mechanical specifications
Dimensions 125.3´55x15.7mm
Weight 160 g
Working temperature -40℃~+70℃
installation drawing (See the following figure)

Drone Video&Data Transmission Module More Than 30KM UAV Links
