CD11HPT Drone Video Transmitter & Receiver Specifi...
1. Fast details of Mini HD Video and Data Transmision
-----Operating Frequency: 2.3-2.5GHz
-----Transmission distance: 8-10KM
-----RF Transmission Power: 1W
-----Bandwidth: 2/4/8MHz
-----Encryption: AES 128
-----Power supply: DV7-18V
-----Antenna: Omni Antenna for Tx and Rx
-----Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output
2. Description of Mini HD Video and Data Transmision
CD11HPT is a mini HD Video and Data transmission COFDM system for UAV offering control, telemetry & payload in, Video Transmission in 1 RF channel. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(15-30ms) transmission.
The system supports
two-way(data&image) communication
adjustable video resolution,
bit rate output with the TPlayer software
It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
3. Specification of Mini HD Video and Data Transmision
| Frequency | 3 frequency for your option 2.3GHz/2.4GHz/2.5GHz 2.3GHz(2304MHz-2390MHz)(2 antennas design) 2.4GHz(2402MHz-2482MHz)(1 antenna design) 2.5GHz(2500MHz-2570MHz)(2 antennas design) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 1Watt (Air to ground 8-10km) |
| Power Consumption | TX: 10Watts |
| RX: 6Watts |
| Frequency Bandwidth | 2/4/8MHz |
| Latency | ≤15-30ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity | -100dbm@4Mhz, -95dbm@8Mhz |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Antenna | 1T 1R |
| Video Input/output Interface | HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX |
| Video Compressed Format | H.264 |
| Bit rate | Software adjustment |
| Encryption | AES 128 |
| Transmission Distance | Air to ground 10km |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/TTL/MAVLINK Telemetry |
| Serial Port | Double Serial ports for bi-directional data and playload |
| Power supply | DC 12V (support DC 7- 18V) |
| Interface | 1080P/60 HDMI Mini RX x1 |
| 100Mbps Ethernet to USB / RJ45 on Windows × 1 |
| S1 TTL bidirectional serial port x1 |
| Power Input x1 |
| Indicator Light | HDMI input/output Status |
| Transmitting and receiving |
| Video board working Status |
| Power |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Temperature Range | Operating temperature: -40°C ~+ 85°C |
| Storage temperature: -55°C ~+ 100°C |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 76×48×20mm |
| Weight | Tx: 93g/Rx: 93g |
4.Feather of Mini HD Video and Data Transmision
Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output
Support Video and Duplex Data
Compatible with different brand flight controller and remote controller
100Mbps Ethernet for option
Matching with our TPlayer software (low latency software decoder) to display video on PC.
Working Temperature: -40℃—+85℃
Support SBUS/TTL/Mavlink Telemetry
Double Serial Ports for bi-directional Data
Offering control, telemetry & payload in, Video Transmission in 1 RF channel

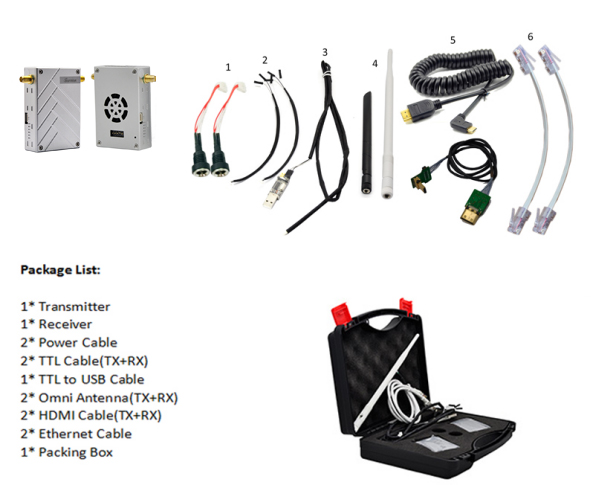

5. Accessories of Mini HD Video and Data Transmision
