Compact and Powerful COFDM Transmitter for Tactical Communications
MB33 Backpack Mesh Radio Specifications-v1.0_compr...
Introduction
Suntor Backpack Waterproof Soldier Broadband Self-organizing Networking Device is designed with removable battery, quick unplug navigation plug interface, supports two-way wireless IP data transmission, PTT voice intercom, wifi coverage, fully waterproof design, easy and convenient to operate, strong environmental adaptability, professional engineering design, and beautiful and atmospheric appearance. It can provide clear multi-channel voice, video, data transmission and other multimedia broadband communication services for soldiers, squads and command system to realize efficient collaboration, tactical command and control. In practical application, combined with remote network resources such as 4G/5G network or satellite network, it can realize tactical and strategic communication applications of line-of-sight transmission, non-line-of-sight transmission and ultra-line-of-sight transmission.
Feature
- Compact Size
- 2 Watt Transmit Power
- 5 Seconds Quick Setup Time
- Up to 52 IP Mesh Nodes
- More Than 10 Hops Networking
- AES128/256 Security Protection
- 10KM Ground Open Area Transmission Distance
Application
The products can be widely used in the army, public security, armed police, firefighting, human defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical care, sea and air communications and other departments and fields, to provide users with reliable, timely, safe and efficient voice, data, video and visualization of the command and scheduling of a wealth of integrated services.

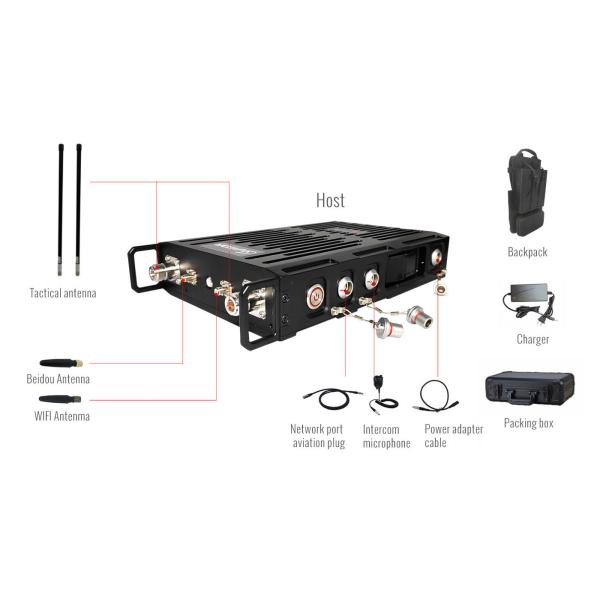

Accessories
Parameters
| System Parameter |
| Operating frequency | 1428~1448MHz |
| Bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 90Mbps@20MHz |
| RF Transmitted power | 2W |
| Receive Sensitivity | -97dBm@1MHz |
| Video input | Support IP network video input , WIFI video access (HDMI video input need to be customized) |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops |
| Access time | 5s after start up of the system |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | AES128/AES256 |
| Power supply mold | Allocate DC 25.2V removable lithium battery |
| Power Consumption | ≤30W |
| Equipment interface |
| Antenna interface | N-K×2 |
| GPS interface | SMA-K |
| WIFI interface | SMA-K |
| Ethernet interface | Aviation interface,Support 100M network interface |
| Audio interface | Aviation interface,Support hand microphone or earphone |
| Physical indicators |
| Dimension | ≤275mm × 198mm ×52mm(include battery) |
| Equipment Weight | ≤3kg(include battery) |
| Protection degree | IP66 |
| Working temperature | -30℃～+65℃ |
